BT9300 Triple-Chuck Bevel Metal Tube Laser Cutting Controller
Clamping Range：Unlimited
LaserEdge BT9300
Purpose-built for heavy-duty and extra-long tube bevel cutting with swing-head calibration, normal vector tracking and compensation. Supports triple-chuck 7-axis pull-feed and full free-floating for zero-remnant cutting. Used in shipbuilding, steel structures, heavy machinery, and construction equipment booms.
Tune Ahead
Precision Safety
Mature Complete
LaserEdge BT9300
Fiber Laser Metal Tube Bevel Cutting Controller
Clamping Range：Unlimited
Tune Ahead
Precision Safety
Mature Complete
Purpose-built for heavy-duty and extra-long tube bevel cutting with swing-head calibration, normal vector tracking and compensation. Supports triple-chuck 7-axis pull-feed and full free-floating for zero-remnant cutting. Used in shipbuilding, steel structures, heavy machinery, and construction equipment booms.
Highlight Features

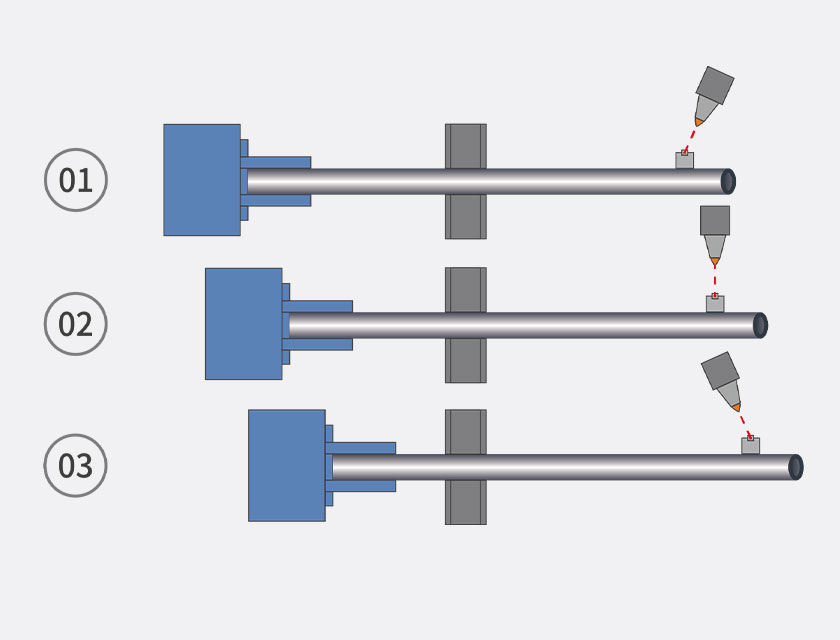

Easy Calibration, Ready to Use
- Rapid Calibration: Coarse calibration, 5-minute visual calibration, and three-line scribing verification enable precise structural parameter measurement, saving manual setup time.

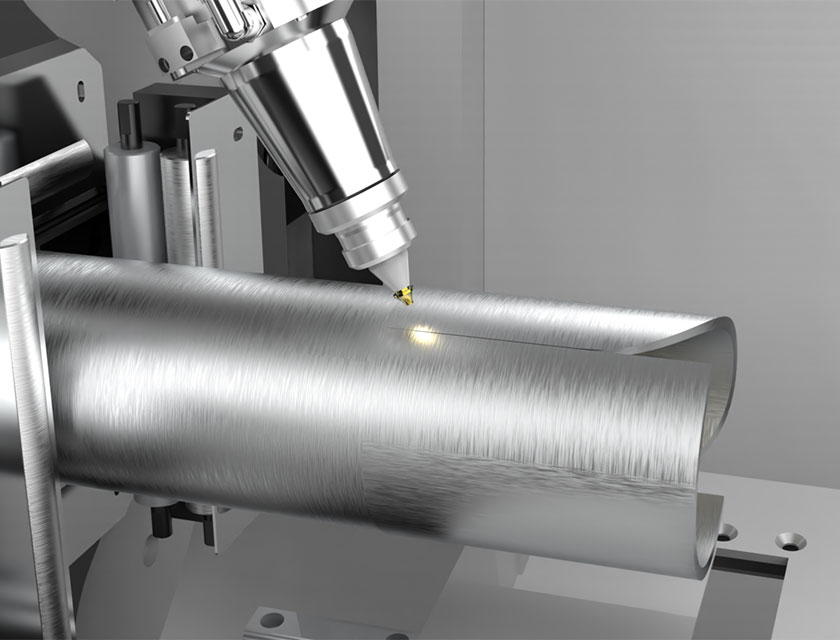

Efficient Machining, Worry-Free Safety
- Lightning Frog Jump: Auto-plans safe tool paths with seamless lift-off and landing, mid-air posture adjustment to avoid edge collisions, and instant laser-on at touchdown — no time wasted.
- Smart Follow-Up: Maintains stable cutting height, eliminating collision risks from posture changes and edge crossing for worry-free operation.

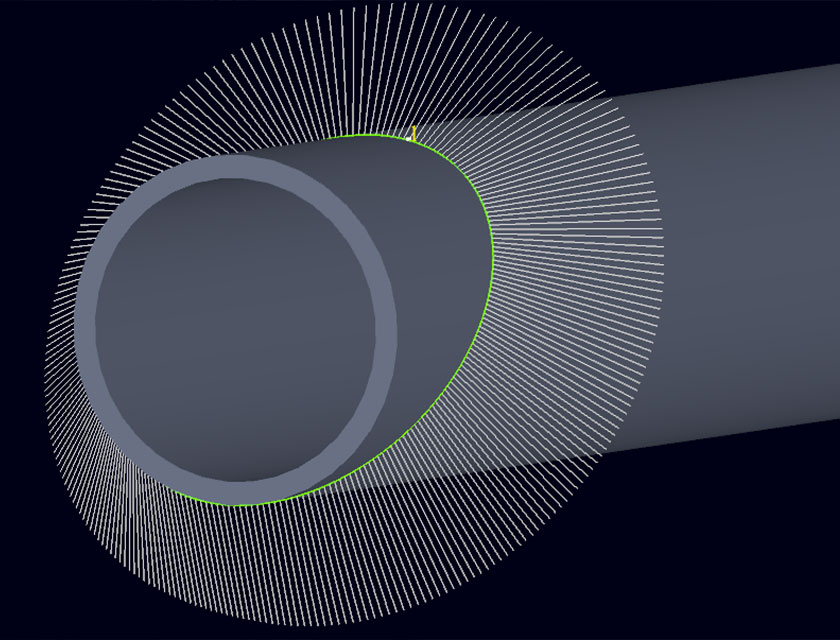

Stable & Precise, Consistent Cross Section
- Integrated Control Algorithm: Five-axis simultaneous motion with stable following height delivers uniform, high-quality cross sections.
- Dynamic Normal Optimization: Auto-adjusts normals for consistent bevel dimension accuracy across all angles — no individual tuning required.
- RTCP Algorithm: Five-axis planning and vector interpolation for high-precision, stable machining.

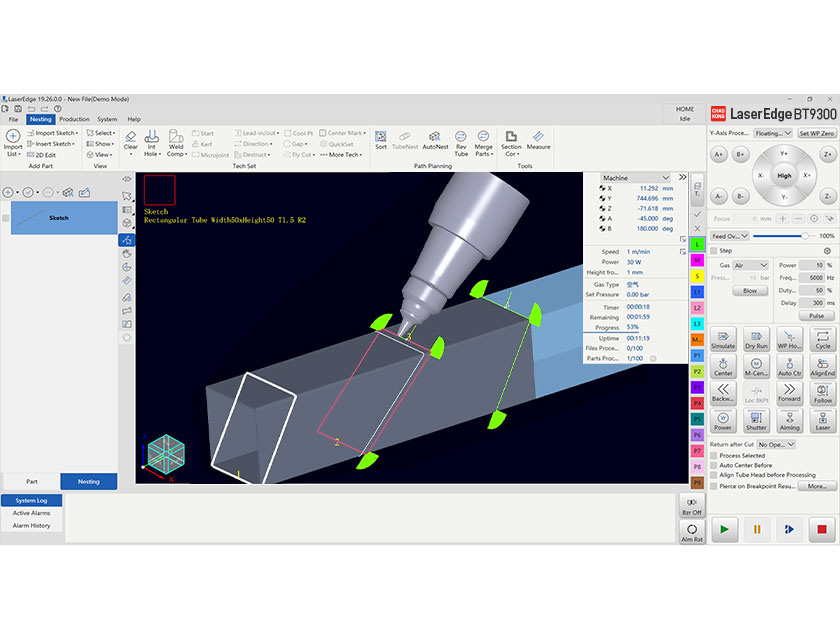

Comprehensive Process, One-Step Done
- Tilted Piercing: Piercing point on the scrap side effectively protects the workpiece.
- Bevel Angle Process: Single setup covers all angles with standardized, reusable parameters for quick changeovers.
- Edge Crossing Process: Independently configurable edge crossing parameters for fine control.
Supporting Hardware
The Mate Series is a motion controller with EtherCAT master and rich I/O. It connects GE expansion modules for extended I/O, sensor, and analog functions, meeting diverse customization needs.
Value-Added Option
LaserEdge BT9300

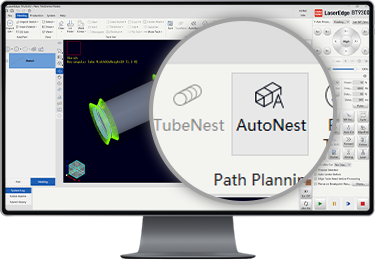

Built-in Nesting Features
Optional Order
NestCAM-Tube
One-stop CAM solution
