BT9100 Small Tube Bevel Metal Tube Laser Cutting Controller
Clamping Range：≤180
LaserEdge BT9100
Purpose-built for precision small-tube bevel cutting with swing-head calibration, normal vector tracking and compensation. Supports multiple bevel types, fast cutting, and zero-remnant processing. Used in fitness equipment, stair handrails, and automotive parts.
Tune Ahead
Precision Safety
Mature Complete
LaserEdge BT9100
Fiber Laser Metal Tube Bevel Cutting Controller
Clamping Range：≤180
Tune Ahead
Precision Safety
Mature Complete
Purpose-built for precision small-tube bevel cutting with swing-head calibration, normal vector tracking and compensation. Supports multiple bevel types, fast cutting, and zero-remnant processing. Used in fitness equipment, stair handrails, and automotive parts.
Highlight Features

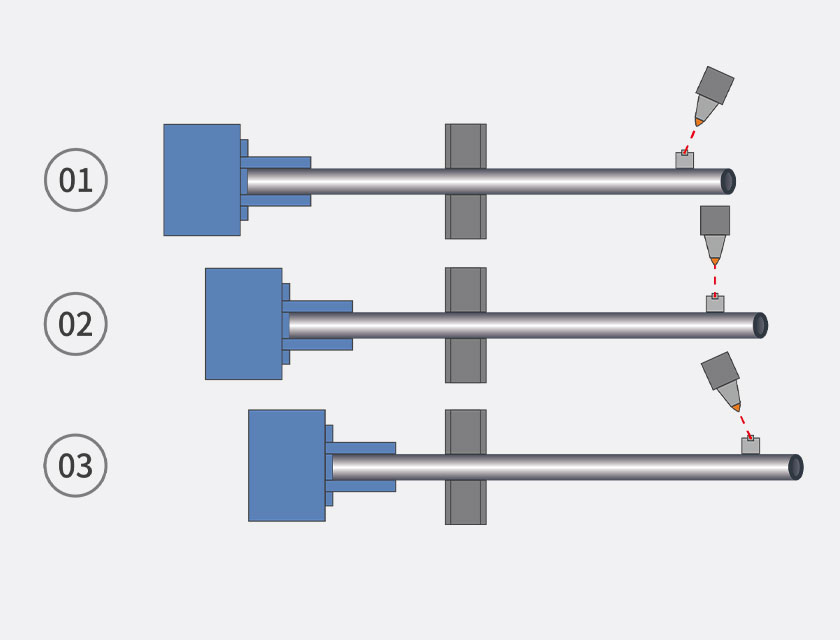

Easy Calibration, Ready to Use
- Rapid Calibration: Coarse calibration, 5-minute visual calibration, and three-line scribing verification enable precise structural parameter measurement, saving manual setup time.

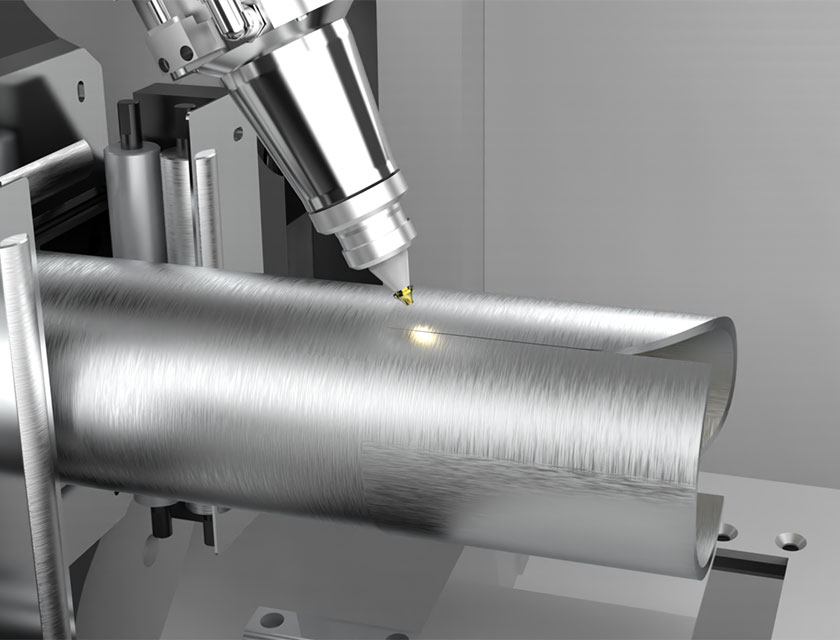

Efficient Machining, Worry-Free Safety
- Lightning Frog Jump: Auto-plans safe tool paths with seamless lift-off and landing, mid-air posture adjustment to avoid edge collisions, and instant laser-on at touchdown — no time wasted.
- Smart Follow-Up: Maintains stable cutting height, eliminating collision risks from posture changes and edge crossing for worry-free operation.

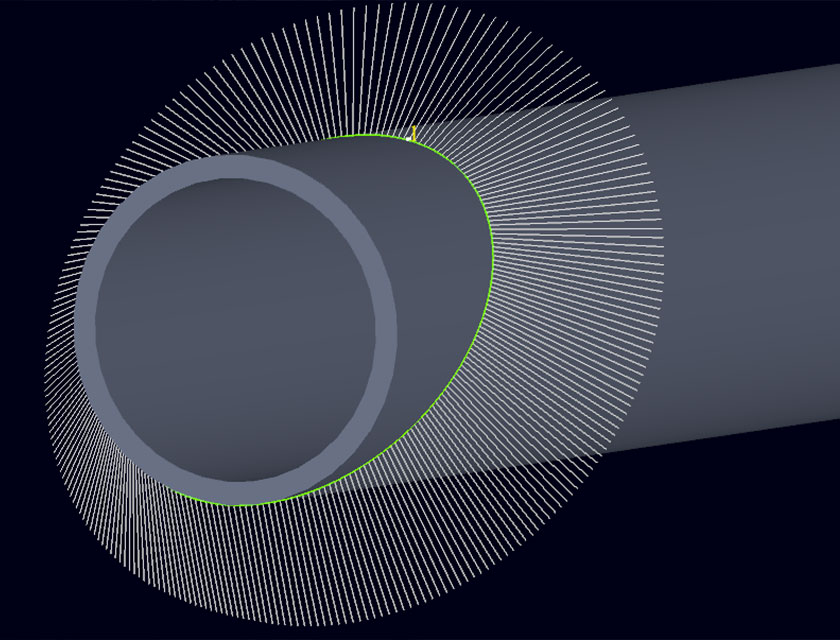

Stable & Precise, Consistent Cross Section
- Integrated Control Algorithm: Five-axis simultaneous motion with stable following height delivers uniform, high-quality cross sections.
- Dynamic Normal Optimization: Auto-adjusts normals for consistent bevel dimension accuracy across all angles — no individual tuning required.
- RTCP Algorithm: Five-axis planning and vector interpolation for high-precision, stable machining.

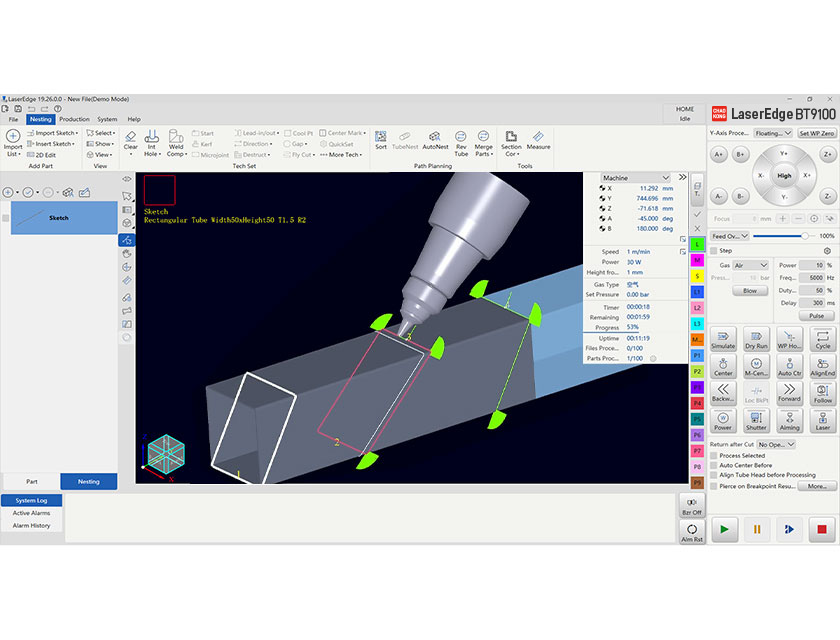

Comprehensive Process, One-Step Done
- Tilted Piercing: Piercing point on the scrap side effectively protects the workpiece.
- Bevel Angle Process: Single setup covers all angles with standardized, reusable parameters for quick changeovers.
- Edge Crossing Process: Independently configurable edge crossing parameters for fine control.
Supporting Hardware
The Mate Series is a motion controller with EtherCAT master and rich I/O. It connects GE expansion modules for extended I/O, sensor, and analog functions, meeting diverse customization needs.
Value-Added Option
LaserEdge BT9100

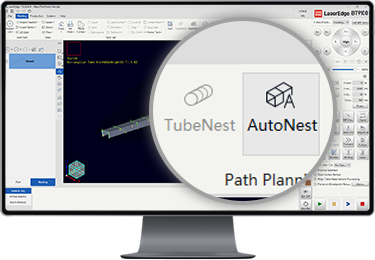

Built-in Nesting Features
Optional Order
NestCAM-Tube
One-stop CAM solution
